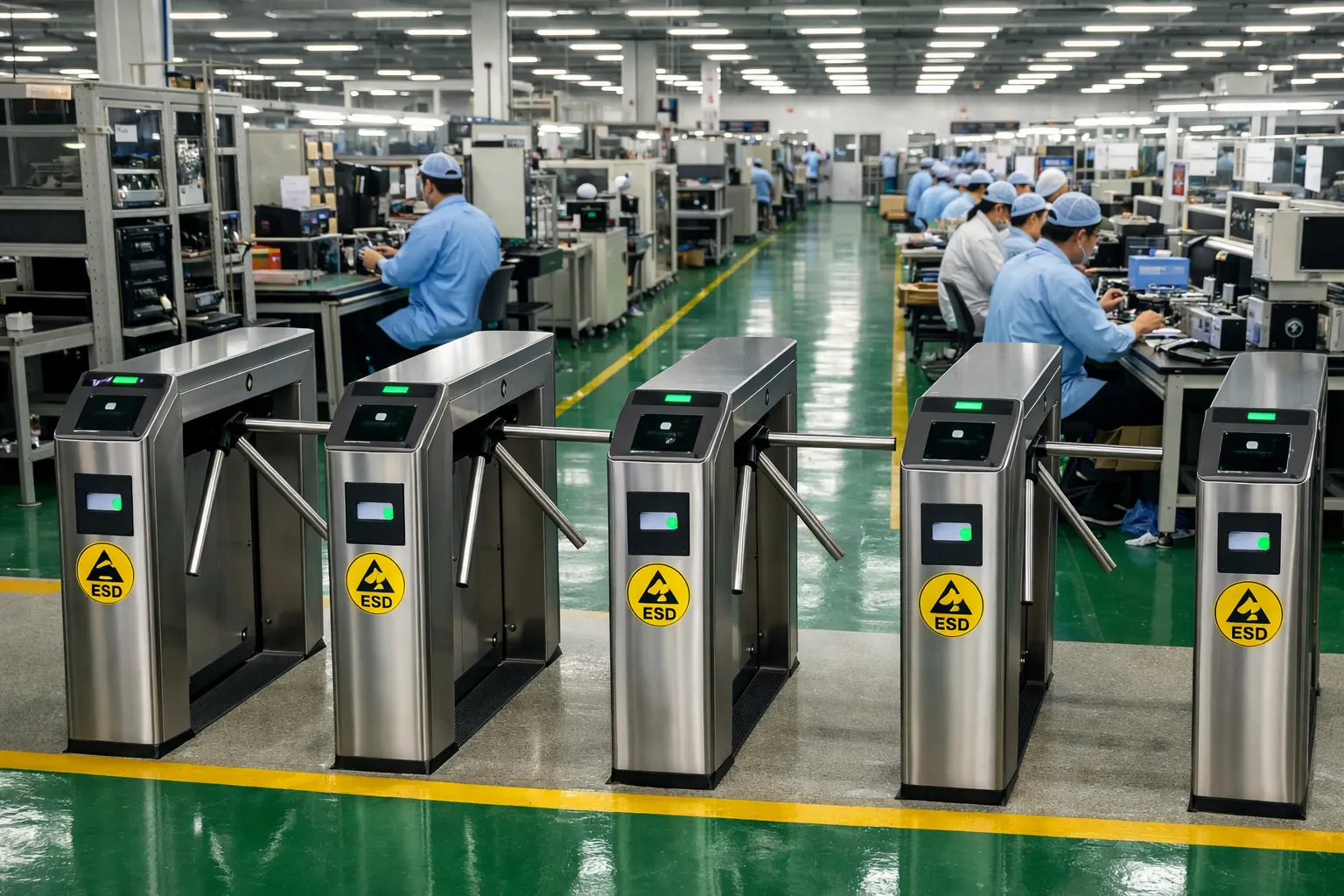

ESD Tripod Turnstile Gate with Access Control
Industrial-grade access control solution ensuring only ESD-compliant operators enter your sensitive production areas. Seamless integration with existing systems.
Critical for Electronics Manufacturing
The ESD Problem
Leading cause of electronic failures
Electrostatic discharge causes catastrophic failures in electronic assemblies. Manual checks are inconsistent and difficult to audit, risking your entire production line.
Our Solution Provides:
Essential For:
Reduction in ESD-related failures after implementation
Industry Standard
IEC 61340-5-1
How It Works
ESD Gear Check
Operator wears wrist strap/footwear
Testing
Resistance to ground measured
Processing
Result sent to controller
Pass Status
Gate unlocks for entry
Fail Status
Access denied & logged
Complete Digital Trail
Every access attempt is logged with timestamp, operator ID, and compliance status for audit trails

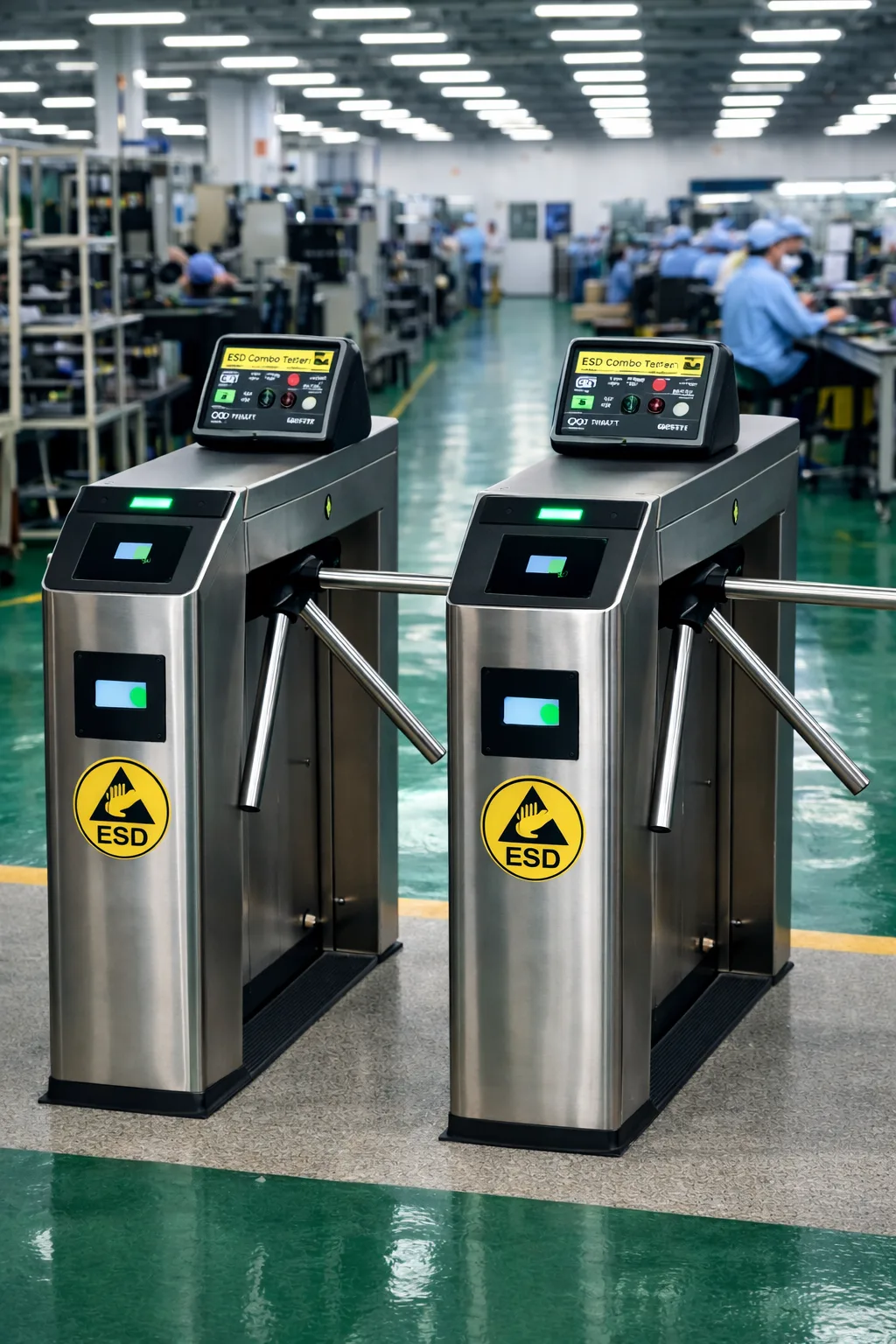

Key Features of ESD Tripod Turnstile Gate
Real-time ESD wrist strap & footwear verification
Automatic access control (no manual intervention)
Compact tripod design – ideal for high footfall areas
Prevents tailgating and unauthorized entry
Visual & audible status indication (PASS / FAIL)
Seamless integration with RFID, biometric & face recognition
Industrial SS body suitable for factory environments
Business & Operational Benefits
Maximum physical + ESD security
Eliminates tailgating completely
100% traceability for audits
Reduces insider risk and non-compliance
Protects high-value production and IP
Security Rate
Audit Compliant
Product Variants
| Model Code | Lane Type | Access Integration | Application |
|---|---|---|---|
| RT-ESD-TT-S | Single Lane | ESD Only | Small SMT lines |
| RT-ESD-TT-R | Single Lane | ESD + RFID | Medium factories |
| RT-ESD-TT-B | Single Lane | ESD + Biometric | Secure zones |
| RT-ESD-TT-D | Dual Lane | ESD + Multi-auth | High traffic areas |
RT-ESD-TT-S
RT-ESD-TT-R
RT-ESD-TT-B
RT-ESD-TT-D
Technical Details
Hardware Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Gate Type | Tripod Turnstile | Body Material | SS304 / SS316 (optional) |
| Arm Material | Stainless Steel | Power Supply | 230V AC, 50Hz |
| Control Voltage | 12V / 24V DC | ESD Test Range | 750 KΩ – 100 MΩ |
| Interface Ports | Relay, RS485, TCP/IP | Indicators | LED + Buzzer |
| Throughput | 25–30 persons/min | Operating Temperature | 0°C to +50°C |
Protection Rating
Continuous Operation
Certified Product
Software Capabilities
Operator Management
Individual operator ESD test logs with complete history
Reporting System
Shift-wise, date-wise, and custom period reports
Real-time Dashboard
Live PASS/FAIL status monitoring and alerts
Deployment Options
Local server or cloud-based deployment available
Data Export
Export reports in Excel, CSV, PDF formats
Integration APIs
ERP, MES, HRMS integration with REST APIs
Industries We Serve
Protecting sensitive electronics across multiple high-tech industries with our advanced ESD access control solutions
Electronics Manufacturing
EMS companies and OEMs
SMT & PCB Assembly
Surface mount technology lines
Semiconductor Fabs
Wafer fabrication facilities
Cleanrooms
Controlled environment areas
Aerospace & Defense
High-reliability electronics
Automotive Electronics
ECU and sensor manufacturing
Serving 500+ Facilities Worldwide
Join leading manufacturers who trust our ESD access control solutions to protect their sensitive electronic production areas.
Discuss Your RequirementsGlobal Standards Certified
Our ESD access control solutions meet the most rigorous international standards
ANSI/ESD S20.20
ESD Control Program
IEC 61340 Series
Electrostatics Standards
ISO 9001
Quality Management
Cleanroom ISO 14644
Cleanroom Compatible
Audit Ready
Documentation
Tested Products
What Our Clients Say
Testimonials
Aaron
Production Head, Electronics Manufacturing Unit
Clark Johnson
Plant Manager, SMT Facility
Frequently Asked Questions
Find answers to common questions about our ESD Tripod Turnstile Gates
Yes, it supports wrist strap, footwear, or combined ESD testing.
The gate remains locked and the failure is logged with date and time.
Absolutely. RFID, fingerprint, and face recognition can be integrated.
Yes, SS body options and compact design make it cleanroom compatible.
Yes, reports can be exported in Excel or CSV format.
Both local server and cloud-based monitoring options are supported.
Ready to Secure Your
Production Floor?
Deploy ESD Tripod Turnstile Gates and achieve 100% compliance. Our experts will design the perfect solution for your facility.
